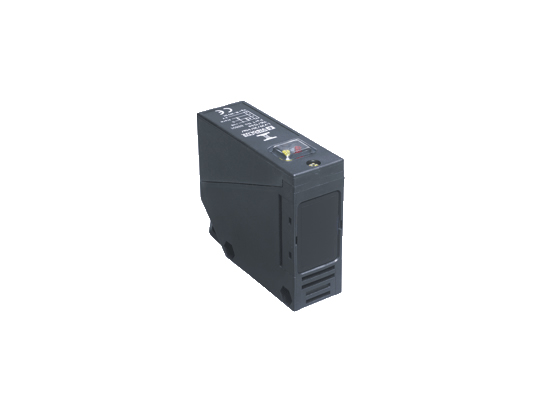

RLK39-54-Z/31/40A/116
Product type: Retroreflective sensor for standard applications
Detection distance: 0-5m
Reflector distance：0.1 ... 5 m
Threshold detection range：6 m
Working voltage: 24 ... 240 V AC (50 ... 60 Hz)
Protection level: IP67
- General specifications
- Effective detection range：0 ... 5 m
- Reflector distance：0.1 ... 5 m
- Threshold detection range：6 m
- Reference target：H50 reflector
- Light source：LED red
- Light type：modulated visible red light
- Polarization filter：yes
- Ambient light limit：IEC / EN 60947-5-2 , 10000 Lux
- Functional safety related parameters
- MTTFd：803 a
- Mission Time (TM)：20 a
- Diagnostic Coverage (DC)：0 %
- Indicators/operating means
- Function indicator：LED yellow: switching state
- LED red: pre-fault indication
- Control elements：Sensing range adjuster, light-on/dark-on changeover switch
- Control elements：switch for timer function
- Electrical specifications
- Operating voltage：12 ... 240 V DC
- 24 ... 240 V AC (50 ... 60 Hz)
- Ripple：10 %
- No-load supply current：≤ 50 mA
- Protection class：II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution!
- The protection class 2 is only valid when the terminal compartment is closed. output circuit has basic insulation to control circuit according to IEC/EN 61140
- Power consumption：≤ 3 VA
- Time delay before availability：≤ 300 ms
- Output
- Switching type：light/dark on
- Signal output：1 relay output
- Switching voltage：max. 240 V AC ; 150 V DC
- Switching current：max. 3 A
- Switching power：DC: max. 90 W AC: max. 750 VA
- Switching frequency：≤ 25 Hz
- Response time：≤ 20 ms
- Timer function：On-/off-delay or pulse extension on choice
- Ambient conditions
- Ambient temperature：-25 ... 55 °C (-13 ... 131 °F)
- Storage temperature：-40 ... 70 °C (-40 ... 158 °F)
- Mechanical specifications
- Housing width：25 mm
- Housing height：64 mm
- Housing depth：75 mm
- Degree of protection：IP67
- Connection：terminal compartment PG9, ≤ 2.5 mm2
- Material：
- Housing：PBT
- Optical face：PMMA
- Mass：approx. 110 g
Recommend
BS4000-M18-14
Output signal: NPN
Detection distance (m): 0-4m
Threshold detection range：4.5m
BT200-M18-15
Output signal: PNP/p>
Detection distance: 0mm-200mm
Light source：IRED , 880 nm
BT500-M18-14
Output signal: NPN
Detection distance: 0mm-500mm
Light source：IRED , 880 nm
